Thermoplastic Road Marking Paint Explained: Process, Heat, and Application

Thermoplastic road marking paint is the silent protector of road safety, guiding drivers with clear and durable markings. To catch a driver’s attention and ensure smooth navigation, these road paints are applied to mark lanes, crossings, and warnings.

Think about driving on a road with no markings,  it’d be like trying to find your way in the dark. Thermoplastic paint makes these road lines highly visible and long-lasting, playing a key role in safer journeys. Before Going through the working process and application of thermo paint, we will talk about thermoplastic paint and more in this blog.

What is Thermoplastic Road Marking Paint?

Thermoplastic road marking paint is a special powder that melts when heated to about 180–220°C. It’s put on roads using machines and quickly hardens into a strong layer. It’s made of things like oil-based materials, glass beads, and synthetic resin. This mix makes the paint strong and able to handle bad weather. The glass beads make the paint shine, so drivers can see the markings clearly. Because it reflects light, the paint stays on the road for a long time and helps keep roads safe. It is most commonly used in white and yellow, but is also available in red, blue, green, and other colors for special markings.

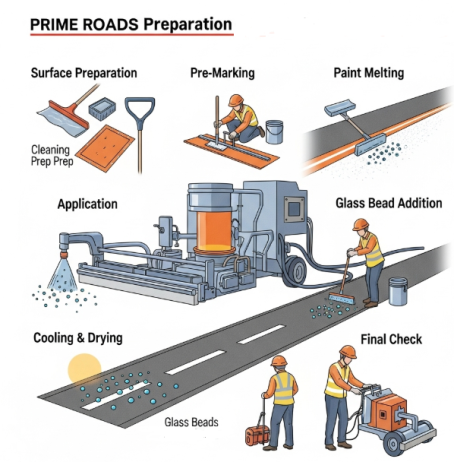

How Is Thermoplastic Paint Applied on Roads?

Checking and Cleaning the Road Surface

First, check the road to see if there are any cracks, wet spots, or oil stains. It’s important that the surface is clean and dry. Use a blower or brush to remove dust, sand, or loose dirt. If the road has oily patches, use a cleaner or carefully heat it with a flame torch to remove the oil. Make sure the surface is dry and warmer than 10°C so that the paint sticks properly.

Marking the Lines Before Painting

Before applying the paint, draw the lines, arrows, or symbols using chalk or temporary paint. This helps guide the actual painting. Use measuring tools like a tape or ready-made stencils to get the correct size and shape. Pre-marking helps you stay on track and avoid mistakes during the painting.

Heating the Thermoplastic Paint

Now, pour the thermoplastic powder into a special heating machine. Heat it to around 180–220°C while constantly stirring it so it melts evenly and doesn’t burn. The paint should become smooth and fully melted before moving it to the painting machine.

⚠️ Do it Careful, if overheated, the paint can lose its quality and shine.

Applying the Paint on the Road

Next, put the hot paint into the road marking machine (manual or automatic). Start painting over the marked lines. Keep the paint layer even, usually around 2.5 to 3 mm thick.

For symbols or pedestrian crossings, place metal stencils on the road and fill them with paint. Move at a steady speed and keep even pressure for clean, smooth lines.

Adding Glass Beads for Night Visibility

Adding high-quality glass beads are made from a special type of glass called soda-lime silica. This glass is very strong and can handle rough weather. It doesn’t break easily and can resist heat and the constant rubbing of car tires.

While the paint is still hot, sprinkle small glass beads on top. This makes the lines shine when headlights hit them at night. Use a glass bead machine or sprinkle them by hand, but make sure the coverage is even.

Letting the Paint Cool and Dry

Let the fresh paint cool down for 5 to 10 minutes. It will harden quickly. Block off the area and don’t let vehicles drive over it until it’s fully dry. Use cones or warning signs to keep the area clear while it cools.

Final Checking

Once the paint has dried, check the lines for correct width, thickness, brightness, and neatness. Use a measuring tool or check with your eyes. If you see any small problems, do a quick touch-up. Final checks help make sure the markings are clear, safe, and long-lasting.

Temperature/Heat Control for Thermoplastic Road Markings

When applying thermoplastic road marking paint, getting the heat right is absolutely key. If the paint isn’t hot enough, it won’t stick properly to the road. If it gets too hot, it can burn, lose its brightness, and become less effective. So, it’s really important to manage the temperature carefully during the entire process. Let’s walk through how temperature affects the paint, what equipment is used, and the safety steps that need to be followed.

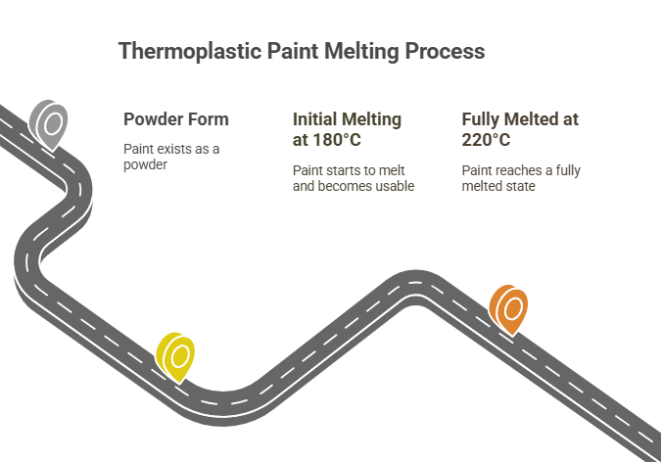

Melting point

Thermoplastic paint comes in powder form. Before applying it on the road, it must be melted into a thick liquid. The ideal melting temperature is between 180°C and 220°C.

• At 180°C, the paint starts to melt and becomes usable.
• At 220°C, it reaches a fully melted state that flows easily and sticks well.

If the temperature goes above 230°C, the paint can burn, turn yellow or brown, and lose its reflective power, especially if glass beads are already mixed in.

Equipment Used

Thermoplastic Preheater

This is where the magic starts. The preheater is the machine that melts the paint powder. It includes:

• A burner or flame to heat the material
• A mixer or stirring blade that keeps the paint moving so it doesn’t get burnt or stick
• A thermometer or digital display to keep an eye on the temperature
• This machine makes sure the paint is melted evenly and is ready for smooth application.

Road Marking Machine (Applicator)

Once the paint is melted, it’s moved to the road marking applicator. This machine:

• Keeps the paint hot during the marking process
• Controls the thickness of the lines (usually about 2.5–3 mm)
• Helps apply clean, straight lines or even fill shapes and symbols using stencils

Depending on the size of the project, workers might use manual machines or self-propelled automatic ones.

Temperature Gauges or Sensors

Throughout the process, it’s super important to check the heat. Workers use built-in meters or handheld thermometers to make sure the temperature stays within the safe range of 180°C to 220°C. This avoids problems like uneven lines or poor bonding.

Safety Standards

Working with molten paint is dangerous if safety isn’t taken seriously. Here are some important safety steps and international standards to follow:

Personal Safety Gear

Workers must wear:

• Heat-resistant gloves
• Face shields or goggles
• Full-body protective clothing
• Safety boots

Equipment Safety

1. Machines must have automatic shut-off systems to avoid overheating.
2. Regular maintenance checks should be done on burners, hoses, and valves.
3. The work area should be clearly marked and closed to traffic until the paint has cooled.

Common Applications of Thermoplastic Road Marking Paint

Highways

Highways need strong and long-lasting road markings to help drivers stay safe, especially at high speeds and during the night. Thermoplastic paint works well here because it sticks firmly to the road and doesn’t wear out easily, even in hot sun, heavy rain, or under the weight of big trucks.

You’ll often see:

1. Lane markings that stay visible for a long time, helping drivers during turns or when changing lanes

2. Center and edge lines that shine at night because of tiny glass beads in the paint
3. Rumble strips made with thermoplastic to warn drivers who may be sleepy or not paying attention

City Roads

Urban roads require clear markings to manage dense traffic and frequent stops. Thermoplastic paint helps with:

• Lane demarcation
• No-parking zones
• Speed breakers
• School zones and caution areas

Pedestrian crossings

In crowded areas like school zones, town centers, or near shopping streets, keeping pedestrians safe is very important. That’s why thermoplastic paint is often used for:

• Zebra crossings
• Stop lines at signals
• Raised walkways for pedestrians

The biggest benefit? It’s easy to see and dries quickly. The bright white color, along with tiny reflective beads, helps drivers notice people crossing the road – even on rainy days or in low light.

Airport runways

At airports, thermoplastic paint is used for:

• Runway threshold markings
• Taxiway guidance lines
• Apron safety zones

Looking to improve road safety? At Prime Roads, we help you plan and carry out road marking projects that make a real difference — whether it’s for highways, city roads, or smart city developments. As roads grow and change, we bring clear, visible, and smart solutions to every line and marking.

Pros and Cons of Thermoplastic Road Marking Paint

Who We Are,

Prime Roads is more than just a road marking company. We’re a trusted road marking paint manufacturer partner that helps build safer and more organized roads. Using top-quality thermoplastic road marking paint, modern machines, and expert methods, we support contractors, city planners, and government projects across India.

🚘Let’s Make Roads Safer, Together

The need for safer roads is more important than ever.

FAQ About Thermoplastic Road Marking Paint

1. What is thermoplastic road marking paint made of?

Thermoplastic paint is made from synthetic resin, plasticizers, pigments, fillers, and reflective glass beads. This combination provides durability, weather resistance, and night-time visibility.

2. How hot does thermoplastic paint need to be for application?

The paint must be heated to between 180°C and 220°C. Below this, it won’t stick well; above this, it may burn and lose its reflectivity.

3. How long does thermoplastic road marking paint last?

On average, thermoplastic markings last 3 to 5 years, depending on traffic load, weather conditions, and maintenance.

4. Can thermoplastic paint be applied in rainy or cold weather?

No. The surface must be dry and above 10°C for proper bonding. Moisture or low temperatures can affect adhesion.

5. Why are glass beads added to thermoplastic paint?

Glass beads reflect headlights at night, making the markings visible in low light. They also improve road safety during fog or rain.

6. Where is thermoplastic road marking paint commonly used?

It’s used on highways, city roads, airports, pedestrian crossings, school zones, and smart city projects.

7. Is thermoplastic paint environmentally friendly?

Yes, most modern thermoplastic paints are lead-free and comply with BIS and international environmental standards.

8. What machines are used to apply thermoplastic paint?

The process involves a preheater (to melt the paint), a road marking applicator, and temperature gauges for heat control.

9. How thick should thermoplastic road markings be?

The standard thickness is 2.5 to 3 mm, depending on application type and road usage.

10. Can thermoplastic paint be used on concrete roads?

Yes, but it’s recommended to use a primer for better adhesion on concrete surfaces.
